Traffic Sign Recognition

Build a Traffic Sign Recognition Project

The goals / steps of this project are the following:

Rubric Points

The rubric points outlined in the project guidelines contain the following points which I shall discuss in turn.

Additional Items, beyond core Rubric

Submission Files - Writeup

The core submission files consist of:

Here is a link to my project code, including this writeup as well as the core python notebook, images, and supporting files.

Here is a link to the output of running the python notebook, which includes various charts and diagrams from the data.

Data Set Summary & Exploratatory Visualization

  1. Provide a basic summary of the data set and identify where in your code the summary was done. In the code, the analysis should be done using python, numpy and/or pandas methods rather than hardcoding results manually.

    The code for this step is contained in the sixth code cell of the IPython notebook.

    I used the basic python to calculate summary statistics of the traffic signs data set:

    • The size of training set is: 34,799 examples
    • The size of test set is: 12,630 examples
    • The shape of a traffic sign image is: (32, 32, 3)
    • The number of unique classes/labels in the data set is: 43

  2. Include an exploratory visualization of the dataset and identify where the code is in your code file.

    The code for this step is contained in the ninth code cell of the IPython notebook.

    I used pandas to produce some summary statistics and graphed them using matplotlib.

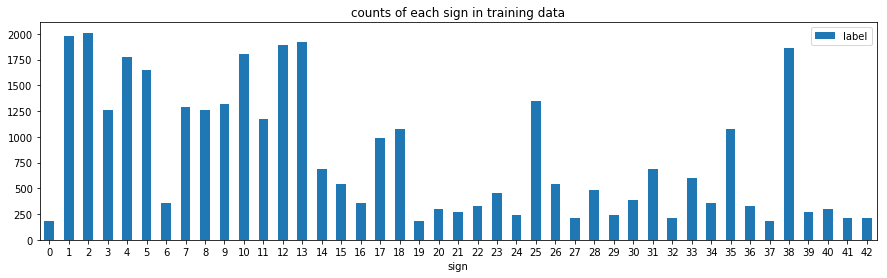

    Here is an exploratory visualization of the data set. It is a bar chart showing how the training data is distributed between the different classes in the dataset:

    class distribution

    Additional graphs showing similar breakouts of the validation and test dataset are available in the output of running the python notebook, including example images of each class of sign within the dataset.

Design and Test a Model Architecture

  1. Describe how, and identify where in your code, you preprocessed the image data. What tecniques were chosen and why did you choose these techniques? Consider including images showing the output of each preprocessing technique. Pre-processing refers to techniques such as converting to grayscale, normalization, etc.

    The code for this step is contained in the eleventh code cell of the IPython notebook.

    Based on Traffic Sign Recognition with Multi-Scale Convolutional Networks, I tried a number of preprocessing techniques including:

    • Conversion of images into the YUV color space
    • Normalization
    • Denoising

    Experimentally I found that of these the conversion of images into YUV color space helped substantially, however the other techniques lowered overall accuracy, so I ultimately removed them from my image preprocessing pipeline.

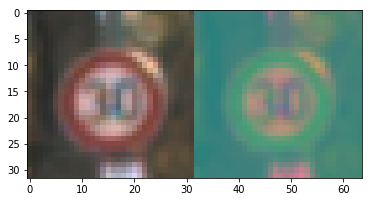

    Here is an example of a traffic sign image before and after conversion into the YUV color space.

    Preprocessing

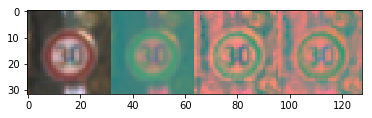

    The following example shows the original image, conversion to YUV, normalization, and denoising:

    Preprocessing

    Note however, in practice I found just the output of the YUV conversion performed better in practice, so the last two preprocessing options were explored, but ultimately not used.

  2. Additional Data Augmentation

    (OPTIONAL: As described in the “Stand Out Suggestions” part of the rubric, if you generated additional data for training, describe why you decided to generate additional data, how you generated the data, identify where in your code, and provide example images of the additional data)

    After performing the data preprocessing the dataset was augmented using techniques described in the above referenced paper this included:

    • Generating 5x more training data
    • Each new training instance was:
      • Rotated by a random amount between +/- 15 degrees
      • Scaled by a random amount between 0.9 - 1.1 x the original image size
    • The data was also shuffled to reduce the effects of data ordering on the optimization algorithm.

    Here is an example of an original image and an augmented version of the image

    Permuted

  3. Describe how, and identify where in your code, you set up training, validation and testing data. How much data was in each set? Explain what techniques were used to split the data into these sets.

    The data for training, validation, and testing data sets came pre divided in the sample data set provided. No special processing was required to split the data into these sets other than loading each of supplied files. This was handled in “Step 0” of my code as the data was loaded.

    To cross validate my model I ran “tf.softmax_cross_entropy_with_logits” on the validation set at the end of each epoch to monitor convergence and again on the test data at the end of training to confirm that the results roughly matched the validation results without introducing bias.

    My final training set, after augmentation, had 208,794 images, my validation and test sets had 4,410 and 12,630 images respectively.

  4. Describe, and identify where in your code, what your final model architecture looks like including model type, layers, layer sizes, connectivity, etc.) Consider including a diagram and/or table describing the final model.

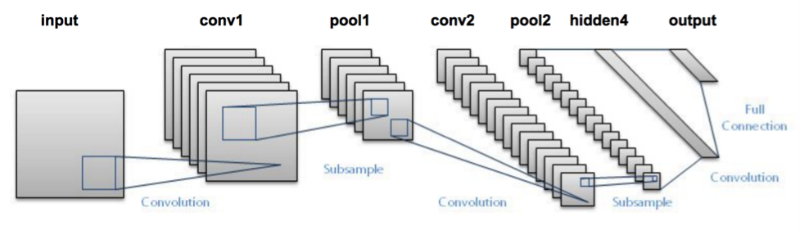

    LeNet Architecture

    The code for my final model is located in the fifteen cell of the ipython notebook.

    My final model consisted of the following layers:

    Layer Description
    Input 32x32x3 YUV image
    Convolution 5x5 1x1 stride, valid padding, outputs 28x28x6
    RELU
    Max pooling 2x2 stride
    Convolution 5x5 1x1 stride, valid padding, outputs 10x10x16
    RELU
    Max pooling 2x2 stride
    Flatten outputs 400
    Fully connected outputs 120
    Fully connected outputs 84
    Fully connected outputs 43
    Softmax

Model Training

  1. Describe how, and identify where in your code, you trained your model. The discussion can include the type of optimizer, the batch size, number of epochs and any hyperparameters such as learning rate.

    The code for training the model is located in the eighteenth, nineteenth and twentieth cells of the ipython notebook.

    This is broken down into:

    • Setting up overall optimization layer on top of the LeNet archictecture outlined above
    • Initialization and/or loading the model from a previous save file
    • Iteration and training

    To train the model, I used an AdamOptimizer as a reasonable initial default optimizer choice and ran models a couple of times to get to a good initial set of weights.

    The final model was calculated on about 300 epochs of data, the last 100 of which are shown in the html output of the python notebook. I ran the twentieth frame three times to do so, after the third time it seemed that little additional progress was being made so I stopped at that point.

    I used a batch size of 128, based on tuning from the prior exercise working with LeNet, and a learning rate of 0.0001, based on a little experimentation and tweaking around what seemed to work well for the dataset.

  2. Describe the approach taken for finding a solution. Include in the discussion the results on the training, validation and test sets and where in the code these were calculated. Your approach may have been an iterative process, in which case, outline the steps you took to get to the final solution and why you chose those steps. Perhaps your solution involved an already well known implementation or architecture. In this case, discuss why you think the architecture is suitable for the current problem.

    The code for calculating the accuracy of the model is located in the twenty-second cell of the Ipython notebook.

    My final model results were:

    • training set accuracy of 89.9%
    • validation set accuracy of 80.1%
    • test set accuracy of 79.7%

    If an iterative approach was chosen:

    • What was the first architecture that was tried and why was it chosen?

      The initial architecture chosen was LeNet, because it provides a good baseline for image classification problems.

    • What were some problems with the initial architecture?

      Initial classification accuracy prior to preprocessing was very low.

    • How was the architecture adjusted and why was it adjusted? Typical adjustments could include choosing a different model architecture, adding or taking away layers (pooling, dropout, convolution, etc), using an activation function or changing the activation function. One common justification for adjusting an architecture would be due to over fitting or under fitting. A high accuracy on the training set but low accuracy on the validation set indicates over fitting; a low accuracy on both sets indicates under fitting.

      After adjusting the preprocessing of the data and data augmentation the LeNet architecture started performing reasonably well. There is some evidence of minor overfitting of the data with the training set accuracy close to 90%, but validation and test closer to 80%.

      This may have been mediated by adding a dropout layer, but that is not included in this submission.

    • Which parameters were tuned? How were they adjusted and why?

      The main parameter that I found most relevant for reasonabl training was to adjust the learning rate. I experimented with increasing and decreasing the rate until I found a rate that seemed to work reasonably.

    • What are some of the important design choices and why were they chosen? For example, why might a convolution layer work well with this problem? How might a dropout layer help with creating a successful model?

      The convolution layers are good because they provide both a reduced model size and allow for a certain amount of translation invariance in the classification task.

      Relu layers are good for introducing a non-linear activation.

      A dropout layer can aid in generalization and reduce overfitting.

Test a Model on New Images

  1. Choose five German traffic signs found on the web and provide them in the report. For each image, discuss what quality or qualities might be difficult to classify.

    I found 12 german traffic signs on the web for this section, they are as follows:

    sign01 sign02 sign03 sign04 sign05 sign06 sign07 sign08 sign09 sign10 sign11 sign12

    The primary considerations that might make each of these more difficult to classify break down to:

    • Is the angle of refrence similar to the angle of reference in the training data?
    • How well did the classifier perform on this type of sign in the test data?
    • How common is the sign type in the training data?
    • How complicated is the background for the image?

    Going in each of the images looked high quality and it was difficult to guess which images would have the most difficulty. However since “Roundabout mandatory” performed poorly on the test data it was a reasonable candidate for difficulty with the new set of images.

  2. Discuss the model’s predictions on these new traffic signs and compare the results to predicting on the test set. Identify where in your code predictions were made. At a minimum, discuss what the predictions were, the accuracy on these new predictions, and compare the accuracy to the accuracy on the test set

    (OPTIONAL: Discuss the results in more detail as described in the “Stand Out Suggestions” part of the rubric).

The code for making predictions on my final model is located in the tenth cell of the Ipython notebook.

Here are the results of the prediction:

Image Prediction
Turn right ahead Turn right ahead
No entry No entry
Pedestrians Pedestrians
Speed limit (60km/h) Speed limit (60km/h)
Speed limit (50km/h) Speed limit (50km/h)
Right-of-way at the next intersection Slippery Road
General caution General caution
Yield Yield
Children crossing Right-of-way at the next intersection
Keep right Keep right
Roundabout manditory Speed limit (70km/h)

The model was able to correctly guess 8 of the 12 traffic signs, which gives an accuracy of 75%. This compares on par to the accuracy on the test set of 79.7%

  1. Describe how certain the model is when predicting on each of the five new images.

    This can be done by looking at the softmax probabilities for each prediction and identify where in your code softmax probabilities were outputted. Provide the top 5 softmax probabilities for each image along with the sign type of each probability.

    (OPTIONAL: as described in the “Stand Out Suggestions” part of the rubric, visualizations can also be provided such as bar charts)

The code for making predictions on my final model is located in the next to last cell of the Ipython notebook.

Probabilities for the images are as follows:

         == Actual ==       - Turn right ahead
    1.00000000000000000000% - *Turn right ahead*
    0.00000000000000938110% - Yield
    0.00000000000000000000% - Ahead only
    0.00000000000000000000% - End of no passing
    0.00000000000000000000% - No passing

         == Actual ==       - No entry
    0.99942445755004882812% - *No entry*
    0.00057554931845515966% - Stop
    0.00000000000001650239% - Road work
    0.00000000000000000000% - Go straight or right
    0.00000000000000000000% - Yield

         == Actual ==       - Pedestrians
    0.99999964237213134766% - *Pedestrians*
    0.00000030158270192260% - Right-of-way at the next intersection
    0.00000000000874672557% - General caution
    0.00000000000024022743% - Slippery road
    0.00000000000000000000% - Traffic signals

         == Actual ==       - Speed limit (60km/h)
    0.80218791961669921875% - *Speed limit (60km/h)*
    0.19507561624050140381% - Speed limit (80km/h)
    0.00186467752791941166% - No passing for vehicles over 3.5 metric tons
    0.00084722309838980436% - Speed limit (50km/h)
    0.00000968348376773065% - Speed limit (100km/h)

         == Actual ==       - Speed limit (50km/h)
    0.95975565910339355469% - *Speed limit (50km/h)*
    0.03532156720757484436% - Speed limit (30km/h)
    0.00492282304912805557% - Speed limit (80km/h)
    0.00000000096775476521% - Speed limit (120km/h)
    0.00000000039890279968% - Speed limit (100km/h)

         == Actual ==       - Stop
    1.00000000000000000000% - *Stop*
    0.00000000000907242770% - Road work
    0.00000000000001902495% - No passing
    0.00000000000000922953% - Bicycles crossing
    0.00000000000000781041% - No entry

         == Actual ==       - Right-of-way at the next intersection
    0.99961996078491210938% - Slippery road
    0.00038006567046977580% - *Right-of-way at the next intersection*
    0.00000000012087592038% - Dangerous curve to the left
    0.00000000000000000000% - General caution
    0.00000000000000000000% - Dangerous curve to the right

         == Actual ==       - General caution
    1.00000000000000000000% - *General caution*
    0.00000004330680525300% - Pedestrians
    0.00000000000000000003% - Traffic signals
    0.00000000000000000000% - Right-of-way at the next intersection
    0.00000000000000000000% - Slippery road

         == Actual ==       - Yield
    1.00000000000000000000% - *Yield*
    0.00000000000000000181% - No vehicles
    0.00000000000000000044% - No entry
    0.00000000000000000000% - Priority road
    0.00000000000000000000% - Keep right

         == Actual ==       - Children crossing
    0.51066815853118896484% - Right-of-way at the next intersection
    0.45330968499183654785% - Beware of ice/snow
    0.02962992154061794281% - *Children crossing*
    0.00588124757632613182% - Dangerous curve to the right
    0.00033603637712076306% - Bicycles crossing

         == Actual ==       - Keep right
    1.00000000000000000000% - *Keep right*
    0.00000000000000017187% - Go straight or right
    0.00000000000000014774% - Turn left ahead
    0.00000000000000000073% - Ahead only
    0.00000000000000000000% - Speed limit (60km/h)

         == Actual ==       - Roundabout mandatory
    0.64722990989685058594% - Speed limit (70km/h)
    0.34869647026062011719% - *Roundabout mandatory*
    0.00342189194634556770% - Speed limit (120km/h)
    0.00063805322861298919% - Speed limit (100km/h)
    0.00000541396593689569% - Pedestrians

This can be summarized as follows:

However:

  1. “Right-of-way at the next intersection”
    • First guess: Slippery road (99.96%)
    • Second guess: Right-of-way at the next intersection (0.038%)

    While the second guess was correct the confidence in the first guess over the correct answer was extreme.

    This is contrasted with:

2. "Children crossing"
   - First guess: Right-of-way at the next intersection (51.07%)
   - Second guess: Beware of ice/snow (45.33%)
   - Third guess: Children crossing (0.03%)

   Where the correct answer was the third guess, but the probability of that was 10x
   the probability of the correct guess on "Right-of-way at the next intersection".


3. Roundabout mandatory
   - First guess: Speed limit (70km/h) (64.72%)
   - Second guess: Roundabout mandatory (34.87%)

   This one the second guess probability looks reasonable, but intuitively the results
   are surprising.  We expect the speed limit signs to be red circles with white interiors
   and numbers, and this sign is nothing like that.  While "Roundabout mandatory" is one
   of the trickier signs due to the small number of training samples, the misclassification
   as a speed limit seems peculiar.
